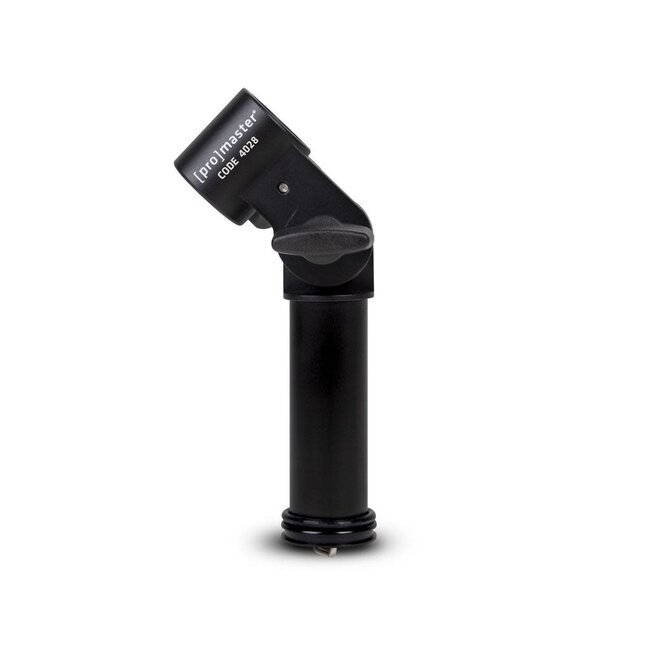

The XC-M Tilting Column Adapter expands the capability of your XC-M Tripod by giving its center column the ability to tilt 180° (90° up and 90° down). This adapter essentially converts your XC-M's center column into a multi-position, adjustable boom.
Just unscrew the weight hook from the center column, loosen the center column twist lock and slide it out of the tripod. Replace it with the Tilting Column Adapter, tighten the twist lock, and open the flip lock on the Tilting Column Adapter. Insert the center column and close the flip lock. This conversion can easily be done in less than 30 seconds. That's all there is to it!
Once your tripod has been converted, you can reinstall the weight hook to the bottom of the adapter and add weight for more stability. A second, retractable weight hook is included with this adapter which you can use at the end of the boom (end of the center column) to counterweight your camera.
To operate the boom, loosen the main knob on the adapter while holding your camera and then tilt the assembly into whatever position you’d like before tightening the knob. To rotate the boom, loosen the twist lock on the yoke of the tripod and spin the adapter. To extend or retract the boom, use the twist lock on the column to adjust its upper stage.
This adapter has a number of teeth machined within its joint to give it an excellent amount of holding power in various tilt positions. Be sure to tighten its main knob before you release your camera to prevent it from falling.
A Tilting Column Adapter can be installed and used permanently on your XC-M, if you so choose, because it can achieve the same vertical position as the 'normal' center column when needed. It's great for macro work, or for extending your camera over a tabletop or a flowing creek. And it makes other tripods highly jealous!
Features:
Benefits:
Important Specs:
* Dimensions and weight are for the adapter sans the weight hook.
